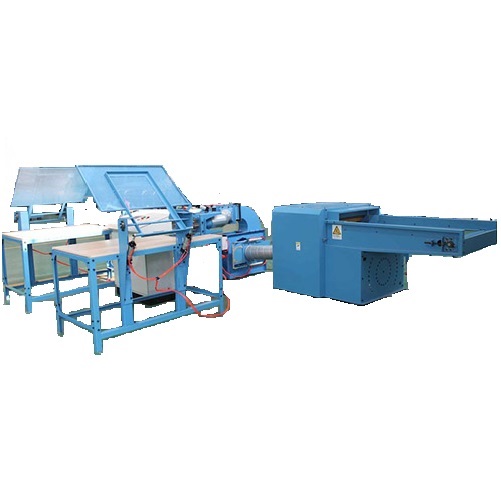

Pillow filling line PFL-F-003
Pillow cushion filling machine is controlled by Siemens PLC program that can be handled by only 1 operator;
[ssba]
Features:
- Pillow cushion filling machine is controlled by Siemens PLC program that can be handled by only 1 operator;
- High capacity
- Designed to meet your specific needs
Specifications:
- Material application:Polyester fiber (0.7-15D 32-64MM)
- Fiber opening rate: Max. 100%
- Air pressure: 6 bar
- Power: 11kw
- Metal detector
- Anti-deviation conveyer
- Anti-stuck structure
- Dynamic balance process
- Fiber opening macchine working width: 1000mm
- Max. Capacity: 10pcs/min according to different production
- Layout: 4950*3800*1040mm
- Shipping Weight: 900kg
Includes:

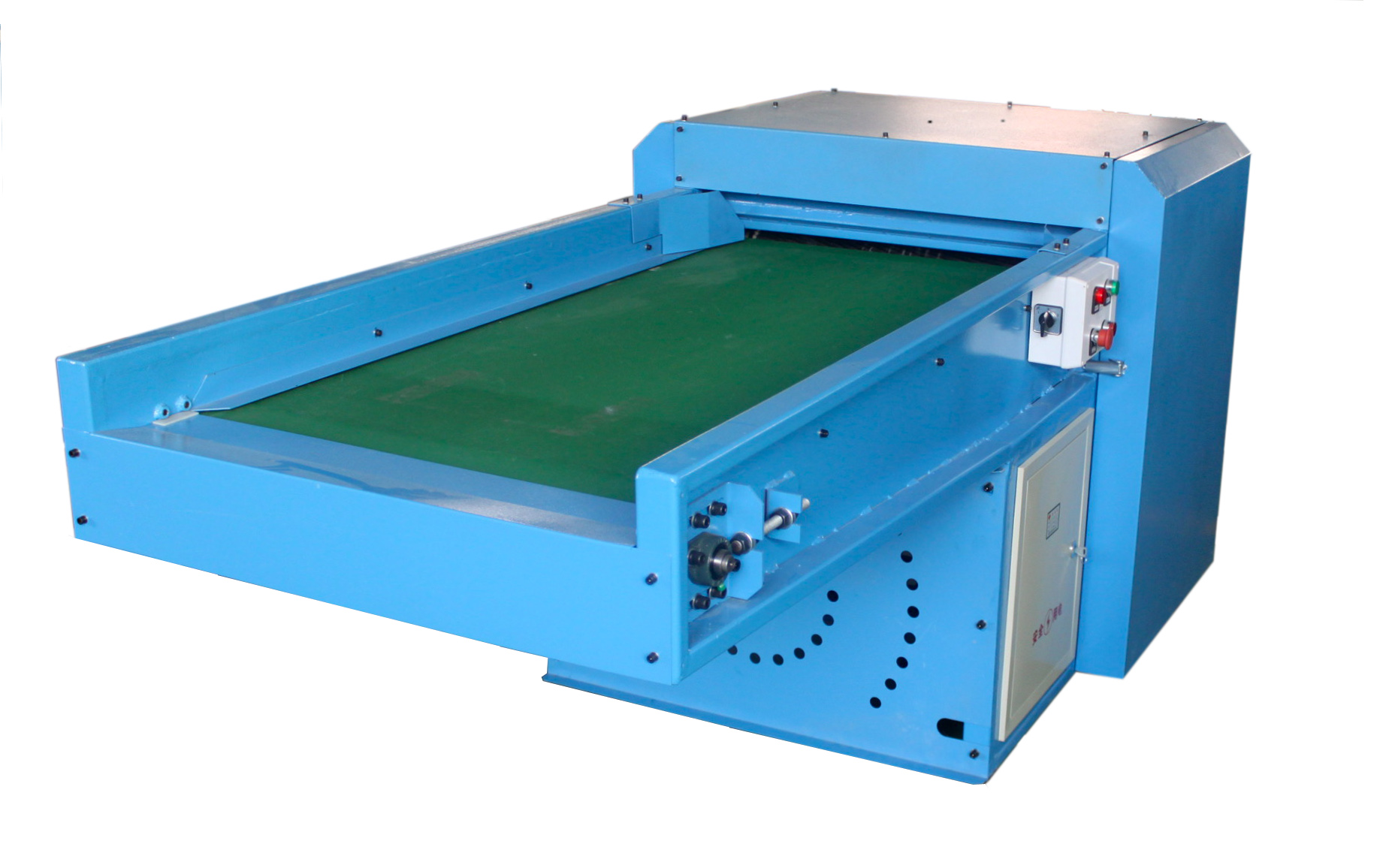

- Fiber fine opener
- Filling blower
- Two filling operating tables
